The Ultimate Guide to Camera Junction Boxes: Why Your Security System Needs Them

In the modern era of security, India has seen a massive surge in CCTV installations. From small kirana stores in Jaipur to high-rise corporate offices in Gurgaon, surveillance is everywhere. However, 90% of system failures in India aren’t caused by the cameras themselves—they are caused by exposed wiring and poor cable management.This is where the Camera Junction Box becomes the unsung hero of your security infrastructure. In this exhaustive guide, we will dive deep into why this small component is the most critical investment for your surveillance system.

1. Understanding the Camera Junction Box

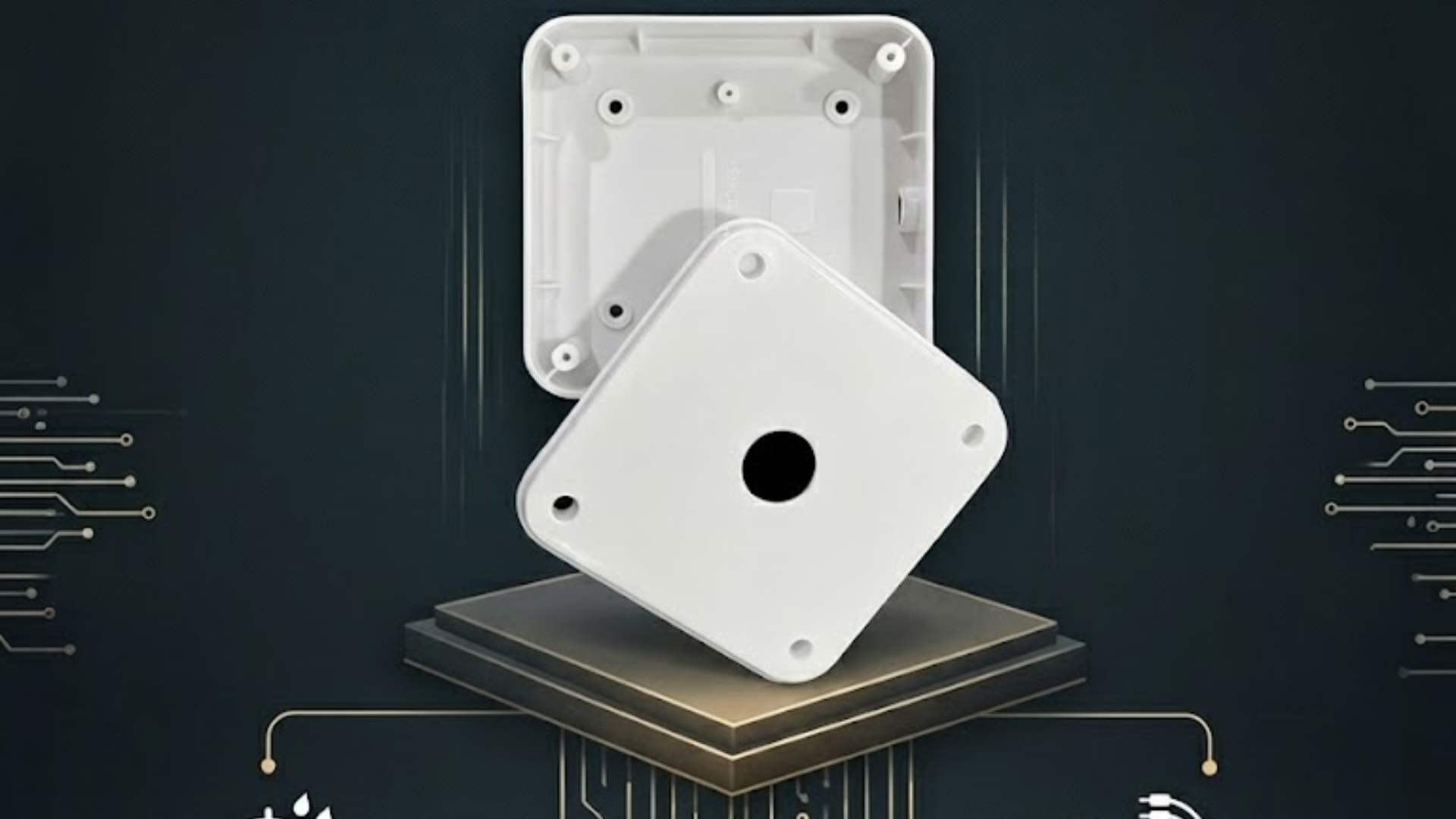

A camera junction box is a specialized enclosure designed to house the electrical connections, video splitters, and power baluns of a security camera. Think of it as a “protective vault” for the most vulnerable part of your CCTV system: the connectors.

Why standard boxes aren’t enough:

In India, many local installers use cheap PVC electrical boxes. While they work temporarily, they aren’t designed for the weight of a camera or the specific entry points required for BNC or RJ45 connectors. A dedicated camera junction box provides:

• Structural Integrity: It acts as a mounting base.
• Environmental Seal: Specifically designed gaskets to keep out moisture.
• Space Management: Enough “loop room” to hide excess cable without bending it at sharp, damaging angles.

2. The Critical Benefits of Using a Junction Box

If you are still wondering whether to spend that extra ₹200–₹500 per camera, look at these data-backed benefits:

A. Total Weatherproofing (The Monsoon Shield)

The Indian monsoon is brutal. High humidity and direct rain cause oxidation on copper connectors.

• Without a box: Water enters the BNC connector, leading to “video loss” or “ghosting” on the screen.
• With a box: The IP66-rated seal ensures the internal components remain 100% dry.

B. Prevention of Signal Loss

Cables that are left hanging are subject to wind tension and physical stress. Over time, the internal copper strands break. A junction box ensures there is no “strain” on the cable joints, maintaining 4K or 1080p signal clarity for years.

C. Vandalism and Tamper Resistance

A thief doesn’t need to break your camera; they just need to cut the wire. By enclosing the wire inside a solid junction box and running the conduit directly into it, you leave zero exposed wires for a vandal to grab or cut.

3. Comparison: Plastic vs. Aluminum Junction Boxes

Choosing the right material depends on your location and budget.

Feature	PVC / Plastic Junction Box	Die-Cast Aluminum Box
Durability	Moderate (can become brittle in sun)	High (Vandal-proof)
Weight	Lightweight	Heavy-duty
Rust Resistance	100% Rust-proof	High (if powder-coated)
Heat Dissipation	Low	High (Better for 4K Cameras)
Ideal Location	Residential / Indoor	Industrial / High-Traffic
Cost	Budget-friendly (₹)	Premium (₹₹)

4. Key Technical Specifications: A Deep Dive for Professionals

When you are browsing for a camera junction box on platforms like Amazon India or buying in bulk from markets like Lamington Road (Mumbai) or SP Road (Bangalore), the “cheap” options often hide poor specs. Here is exactly what you need to look for to ensure industrial-grade reliability:

A. The Importance of IP (Ingress Protection) Ratings

In India, dust is as big an enemy as rain. An IP66 rating is the gold standard for CCTV installations.

• The First Digit (6): This means the box is “Dust Tight.” In dry, dusty regions like Rajasthan or Delhi, fine particles can enter a box and settle on the BNC connectors, causing overheating or signal “noise.”
• The Second Digit (6): This indicates protection against high-pressure water jets.

B. UV Stabilization: The “Yellowing” Problem

Cheap plastic boxes in India turn yellow and brittle within 6 months due to intense UV radiation. When a box becomes brittle, it cracks, allowing water to seep in.

• Pro Tip: Always ask for UV-stabilized polycarbonate or high-impact ABS plastic. If you are installing in direct sunlight on a rooftop, Die-cast Aluminum with a powder-coated finish is the only way to ensure 10+ years of life.

C. Mounting Hole Patterns (The “Universal” Factor)

Nothing is more frustrating than being 20 feet up a ladder only to find your Hikvision camera doesn’t align with the junction box holes.

• Universal Top Plates: High-quality boxes come with a “multi-hole” pattern. This supports:
  • 3-hole triangular mounts (Common for Dome cameras).
  • 4-hole square mounts (Common for heavy Bullet cameras).
  • Central cable pass-through (To hide the “pigtail” wire completely).

D. Cable Gland and Entry Points

Look for a box that offers multiple entry points (Bottom and Side).

• Side Entry: Used when the conduit (pipe) is running along the surface of the wall.
• Bottom Entry: Preferred to prevent gravity from pulling rainwater into the box.
• Gland Size: Ensure the entry point can accommodate a 20mm or 25mm PVC conduit pipe, which are the standard sizes used by Indian electricians.

5. Professional Step-by-Step Installation Guide

A “camera junction box” is only as good as its installation. If installed poorly, it can actually trap water inside, acting like a bucket and destroying your camera faster. Follow this Master Installation Workflow:

Step 1: Surface Preparation and Marking

Before drilling, hold the junction box against the wall. Use a spirit level to ensure it is perfectly straight.

• For Brick/Concrete: Use a 6mm masonry drill bit. Avoid drilling into the “mortar” (the cement between bricks) as it is weak and will loosen over time.
• For Metal Poles: Use stainless steel hose clamps (Jubilee clips) to secure the box without drilling into the pole, which prevents rusting of the structure.

Step 2: Creating the “Drip Loop” (Crucial for India)

Even if you use the best waterproof box, water can “travel” along the wire.

• The Technique: Let the cable hang slightly lower than the entry point of the box before it goes inside. This creates a “U” shape.

Step 3: Managing the “Pigtail” and Connectors

Inside the box, you have the camera’s “pigtail” (the short cable attached to the camera), the BNC connector (for video), and the DC pin (for power).

• Avoid Over-bending: Do not bend the Coaxial or Cat6 cable at a 90-degree angle. This causes “Micro-fractures” in the copper, leading to flickering video.
• Insulation: Even inside the box, wrap the BNC connection with a single layer of electrical tape or use heat-shrink tubing for added safety against internal condensation.

Step 4: The “Silicone Shield” Method

After the box is screwed to the wall, there is often a tiny gap between the box and a rough-textured wall.

• The Professional Trick: Apply a bead of Weatherproof Silicone Sealant along the TOP and SIDES of the box where it meets the wall. Leave the BOTTOM edge unsealed. This allows any internal condensation or accidental moisture to escape through the bottom, while preventing rain from entering from the top.

Step 5: Final Closure and Gasket Check

Before tightening the lid:

1. Ensure the rubber gasket (the black/orange ring) is seated perfectly in its groove.
2. Tighten the screws in a “Star Pattern” (Top-Left, then Bottom-Right, etc.). This ensures even pressure on the seal, preventing gaps.
3. Check that no wires are “pinched” between the lid and the base.

Frequently Asked Questions (FAQ)

Q1: Can I use a regular electrical box instead? A: You can, but it is not recommended. Regular boxes often lack the weight-bearing capacity for heavy cameras and do not have the specific drill patterns needed for camera bases, leading to a “jugaad” look that lacks durability.

Q2: Does every camera need a junction box? A: If the wiring is hidden inside a false ceiling or behind a wall, you might not need one. However, for any outdoor installation, a junction box is mandatory for warranty and longevity.

Q3: Which color is best: White or Black? A: In India, White or Grey is preferred. Black boxes absorb more heat from direct sunlight, which can increase the operating temperature of the camera’s internal processor.

Q4: Are these boxes compatible with both Dome and Bullet cameras? A: Most modern junction boxes are “Universal.” However, always verify the diameter of your camera’s base against the box’s top plate.

Conclusion

A camera junction box is the foundation of a reliable security system. It protects your investment from the harsh Indian environment, prevents tampering, and gives your property a professional, clean look. Whether you are an installer looking to provide the best service to your clients or a homeowner DIY-ing your security, never skip the box.
