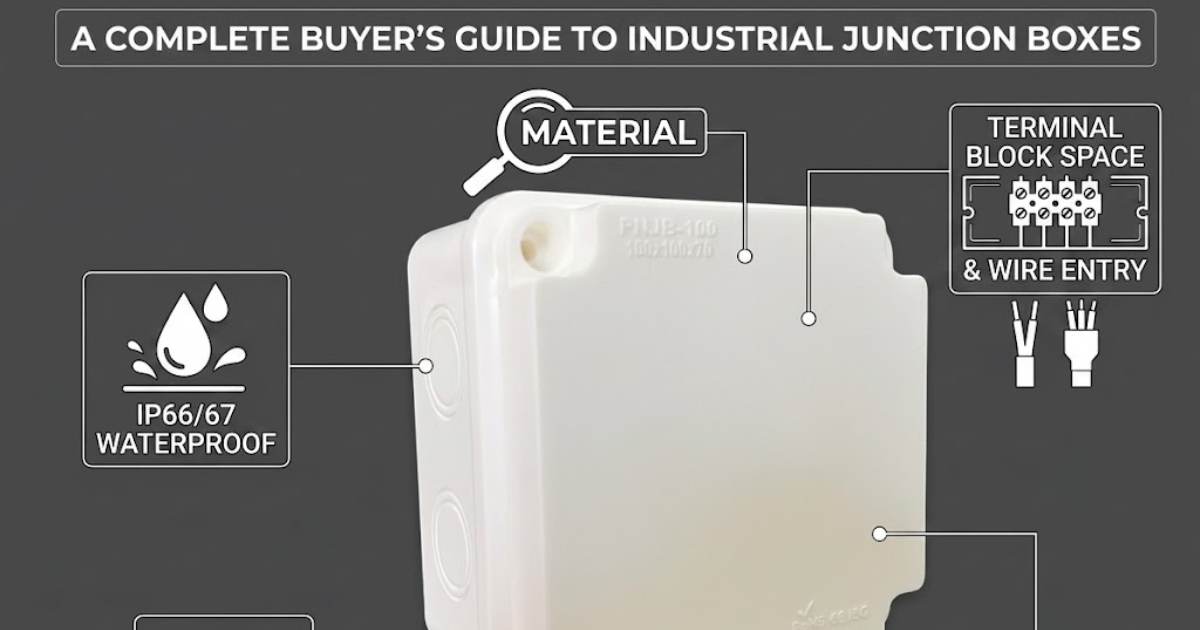

How to Choose the Right Industrial Junction Box: A Complete Buyer’s Guide

In any industrial ecosystem—be it a sprawling automobile assembly line in Pune, a pharmaceutical cleanroom in Hyderabad, or a heavy engineering plant in Gujarat—electrical wiring is the fundamental infrastructure that keeps operations running.Among all electrical assets, the industrial junction box is one of the most critical yet frequently overlooked components. It serves as the central meeting point where electrical wires terminate, split, and connect. Without the right enclosure, these vital connections are exposed to dust, moisture, corrosive chemicals, and accidental physical impacts, which can cause catastrophic short circuits, production downtime, and severe financial losses.

Choosing the perfect industrial junction box requires a deep understanding of engineering specifications, environmental conditions, and international safety standards. This ultimate buyer’s guide breaks down everything you need to know to make an informed, reliable, and cost-effective procurement decision.

1. Understanding the Core Purpose of an Industrial Junction Box

Before diving into the technical specifications, it is important to understand why a standard domestic electrical box cannot survive a factory floor. An industrial junction box is engineered to deliver three primary layers of protection:

• Environmental Protection: Safeguards internal wiring blocks from dust, humidity, water jets, and corrosive gases.
• Personnel Safety: Prevents factory workers and technicians from accidental contact with live high-voltage terminals.
• Equipment Protection: Limits the spread of internal electrical fires or sparks, ensuring that an internal fault does not ignite the surrounding industrial atmosphere.

2. Material Selection: The Foundation of Durability

The material of your industrial junction box dictates how long it will survive in your specific working environment. Selecting the wrong material can lead to premature degradation, rust, structural failure, or electrical hazards.

Comprehensive Material Breakdown

A. Stainless Steel (SS304 and SS316)

Stainless steel is the gold standard for heavy-duty industrial applications.

• SS304: Offers excellent protection against rust and mechanical impacts. It is widely used in indoor industrial environments, automotive plants, and general manufacturing.
• SS316: Contains molybdenum, which provides superior resistance against chlorides and severe chemical corrosion. This makes it mandatory for coastal regions, marine environments, and chemical processing zones.

B. Mild Steel (MS) / Carbon Steel

Mild steel boxes are powder-coated to prevent rusting. They offer exceptional structural strength and high impact resistance at a much lower cost than stainless steel. They are ideal for dry indoor warehouses, commercial building basements, and controlled workshops.

C. Die-Cast Aluminum

Aluminum enclosures are lightweight yet exceptionally strong. They possess excellent thermal conductivity, allowing internal heat generated by components to dissipate rapidly. They also provide natural EMI/RFI shielding, making them perfect for housing sensitive electronic sensors, outdoor telecom equipment, and automation control modules.

D. Polycarbonate and ABS Plastics

These are engineered thermoplastics that offer distinct advantages:

• Polycarbonate: Highly impact-resistant, UV-stabilized, and non-conductive. It can withstand harsh outdoor sunlight without cracking, making it a favorite for solar power plants.
• ABS: A more economical alternative to polycarbonate. It is lightweight and easy to modify (drilling cable entries), best suited for indoor control systems and non-hazardous environments.

E. Fiberglass Reinforced Polyester (FRP / GRP)

FRP enclosures are composite materials that do not rust, dent, or conduct electricity. They are highly resilient against harsh acids, alkalis, and salty sea air. They are extensively used in fertilizer plants, water treatment facilities, and petrochemical complexes.

3. Demystifying Ingress Protection (IP) and NEMA Ratings

An industrial junction box is only as good as its sealing capability. To quantify this protection, international standards use IP (Ingress Protection) and NEMA (National Electrical Manufacturers Association) ratings.

Decoding the IP Rating System

An IP rating consists of two digits (e.g., IP66):

1. The First Digit (0–6): Measures protection against solid particles (like dust, tools, and accidental touch). 6 represents complete dust-tight protection.
2. The Second Digit (0–9K): Measures protection against liquids (moisture and water).

IP [6] [6]

   │   └── Second Digit: Protection against high-pressure water jets

   └── First Digit: Complete protection against dust ingress

Critical Ratings for Indian Industrial Environments

• IP65 Enclosures: Completely dust-tight and protected against low-pressure water streams from any angle. Perfect for indoor textile mills or assembly lines where regular dusting or light cleaning occurs.
• IP66 Enclosures: Designed to withstand high-pressure, heavy water jets. This rating is mandatory for outdoor installations exposed to heavy Indian monsoons, or food processing units that undergo daily high-pressure washdowns for sanitization.
• IP67 / IP68 Enclosures: Dust-tight and capable of surviving temporary or continuous immersion in water. Essential for wastewater treatment plants, pump houses, and underground mining operations.

4. Hazardous Areas and Flameproof / Explosion-Proof Compliance

In industries dealing with volatile substances, a standard junction box poses a severe safety hazard. If an internal wire disconnects or shorts, it can create a tiny spark. In an atmosphere filled with flammable gases or combustible dust, that small spark can trigger a massive explosion.

Classification of Hazardous Zones

Hazardous environments are classified into zones based on the frequency and duration of the occurrence of an explosive atmosphere:

• Zone 0 / Zone 20: Explosive atmosphere is present continuously or for long periods.
• Zone 1 / Zone 21: Explosive atmosphere is likely to occur in normal operation occasionally.
• Zone 2 / Zone 22: Explosive atmosphere is not likely to occur in normal operation, and if it does, it will exist for a short period only.

Explosion-Proof (Ex-d) vs. Increased Safety (Ex-e)

• Flameproof/Explosion-Proof (Ex-d): These heavy-duty enclosures (often made of cast iron or heavy die-cast aluminum) are designed to contain an internal explosion without allowing the flame or hot gases to escape into the external atmosphere.
• Increased Safety (Ex-e): These boxes focus on preventing any sparks, excessive heat, or electrical arcs from occurring in the first place through superior internal terminal design and high-grade insulation.

Regulatory Compliance Note: In India, all hazardous area enclosures must comply with IS/IEC standards and carry valid certifications from recognized bodies such as the Central Institute of Mining and Fuel Research (CIMFR) and approvals from the Petroleum and Explosives Safety Organization (PESO).

5. Sizing, Cable Management, and Thermal Considerations

Choosing the correct box size involves more than measuring the space available on a wall or machine frame. Under-sizing is a frequent mistake that leads to overcrowded wiring, overheating, and installation delays.

Key Factors to Determine Enclosure Size

1. Terminal Block Count: Calculate the exact number of wires entering and leaving the box. Each wire requires a terminal point on the DIN rail. Leave a minimum of 20% to 30% spare capacity for future modifications or plant expansions.
2. Wire Bend Radius: Thick industrial cables (especially armored aluminum or copper cables) cannot bend at sharp 90^\circ angles. Ensure there is enough clearance between the terminal block and the enclosure wall to accommodate the natural bend radius of the cables without causing strain on the terminations.
3. Thermal Management: If the junction box houses active electronic components like relays, small SMPS power supplies, or signal converters, they will generate heat. The box must have enough internal air volume or surface area to dissipate this heat, preventing component degradation.

Cable Entry and Gland Selection

A junction box is completely vulnerable if its cable entries are poorly sealed.

• Knockouts vs. Plain Walls: Some plastic and aluminum boxes come with pre-punched holes (knockouts) that can be easily popped out. For heavy industrial applications, plain-walled metal boxes are preferred so that engineers can drill customized holes exactly where needed.
• Cable Glands: Always use industrial cable glands (single-compression or double-compression) that match the material and IP rating of the box. For example, using a plastic gland on an IP66 stainless steel box completely compromises the structural and environmental rating of the entire system.

Industrial Junction Box Comparison Matrix

This comprehensive table assists procurement teams and project engineers in matching application requirements with the ideal junction box configuration:

Industry Sector	Typical Environmental Challenges	Recommended Box Material	Ideal IP Rating	Critical Certifications / Features
Pharmaceuticals & Cleanrooms	Chemical washdowns, stringent hygiene rules, corrosive sanitizers.	Stainless Steel (SS316L)	IP66 or IP69K	Sloped-roof design to prevent water pooling, smooth mirror-polish finish.
Food & Beverage Processing	High-pressure hot water washdowns, organic acids, steam exposure.	Stainless Steel (SS304 / SS316)	IP66 / IP69K	Food-grade silicone gaskets, hygienic latching systems.
Oil & Gas / Petrochemicals	Volatile hydrocarbon gases, explosive vapor, high fire risk.	Flameproof Cast Iron / Heavy Die-Cast Aluminum	IP66	PESO, CIMFR, ATEX / IECEx Certifications (Ex-d / Ex-e).
Cement & Steel Plants	Heavy conductive dust, high ambient temperatures, mechanical impacts.	Thick Mild Steel (Powder Coated) / Die-Cast Aluminum	IP65 / IP66	High IK impact rating, heavy-duty dust gaskets.
Solar Power Plants & Wind Farms	Extreme UV radiation, wide temperature fluctuations, heavy monsoons.	UV-Stabilized Polycarbonate / FRP	IP66	UV-resistant formulation, breathable vent valves to prevent internal condensation.
Marine & Coastal Infrastructure	Saltwater spray, high humidity, continuous brackish mist.	Marine-grade Stainless Steel (SS316) or FRP	IP66 / IP67	High pitting resistance, non-corrosive hinges and hardware.

6. A Step-by-Step Procurement Checklist

When preparing a Request for Quotation (RFQ) for electrical vendors, use this comprehensive checklist to ensure you receive accurate quotes and avoid technical misalignments:

Technical Specification Checklist

• [ ] Define the Environment: Is it indoor or outdoor? Is it exposed to direct sunlight, chemicals, or saltwater?
• [ ] Determine Hazardous Zone Status: Does the area require flameproof (Ex-d) or increased safety (Ex-e) compliance? Are PESO/CIMFR certificates available?
• [ ] Select Material: SS304, SS316, Aluminum, MS Powder Coated, Polycarbonate, or FRP?
• [ ] Verify IP Rating: Is IP65 sufficient, or does the application demand IP66/IP67?
• [ ] Calculate Enclosure Dimensions: Have you accounted for terminal blocks, wire bend radius, and a 20% future expansion buffer?
• [ ] Plan Cable Entries: How many cables are entering? What are their diameters? Are matching double-compression glands included in the bill of materials?
• [ ] Confirm Mount Style: Wall-mounted lugs, pole-mounted brackets, or floor-standing plinths?
• [ ] Check Locking Mechanism: Screw-cover, hinged door with quarter-turn latches, or heavy-duty padlocking facilities for security?

Frequently Asked Questions (FAQs)

Q1: Can I use an SS304 junction box in a coastal chemical plant?

Answer: It is not recommended. While SS304 offers good rust resistance in standard industrial zones, coastal atmospheres are rich in airborne chlorides. Chlorides cause “pitting corrosion” in SS304, creating microscopic holes over time. For coastal and marine setups, always specify SS316, which contains molybdenum to fight chloride corrosion.

Q2: What is the difference between an IP65 and an IP66 junction box?

Answer: Both are 100% dust-tight. The difference lies in their water resistance. An IP65 box protects against low-pressure water streams (like a garden hose or light splashing).

Q3: Why is condensation forming inside my outdoor IP66 weatherproof junction box?

Answer: High IP ratings trap air inside the box. During daytime, the temperature inside rises, and at night, the enclosure cools down rapidly. This temperature differential causes the ambient moisture trapped inside the air to condense into water droplets on the inner walls. To solve this, install a specialized breather drain valve or a ventilation plug that allows air pressure to equalize without compromising the overall IP rating.

Q4: Are plastic (polycarbonate) junction boxes strong enough for heavy industries?

Answer: Yes, modern high-grade engineered thermoplastics like polycarbonate offer exceptional impact resistance, often rated up to IK08 or IK09 (meaning they can withstand significant physical impacts). They are rust-proof, non-conductive, UV-stabilized, and highly cost-effective compared to stainless steel.

Q5: What does an IK rating mean on an industrial enclosure datasheet?

Answer: The IK rating is an international standard (IEC 62262) that defines how much mechanical impact an enclosure can handle. It ranges from IK00 (no protection) to IK10 (protected against a 5 kg steel element dropped from a height of 40 cm). In heavy manufacturing units where tools or heavy machinery might accidentally strike the box, choosing a high IK-rated box (IK08 to IK10) is essential.

Q6: Can a flameproof (Ex-d) box be modified by drilling extra holes on-site?

Answer: Absolutely not. Flameproof boxes are precision-engineered cast structures. Drilling unauthorized holes destroys the flame path profile and instantly voids its PESO/CIMFR certification, turning it into a severe safety hazard. Any extra cable entry configurations must be specified during the design phase and drilled by the certified manufacturer before delivery.

Conclusion: Investing in Reliability

An industrial junction box is the first line of defense for your facility’s entire electrical and automation network. Choosing a cheaper, lower-grade enclosure to save on upfront costs can lead to catastrophic system failures, component damage, and expensive unexpected operational downtime.

By analyzing your specific factory floor environment, understanding IP and hazardous zone requirements, selecting the appropriate material, and factoring in future expansions, you can ensure long-term operational safety and peak efficiency for years to come. Ensure your engineering team coordinates directly with certified manufacturers to secure the exact test certificates required for your site compliance.
