Electrical infrastructure is the backbone of modern living. Whether it’s a residential complex in Jaipur or an industrial plant in Jhunjhunu, the reliability of power distribution hinges on how well we protect our circuits. The MCB PVC enclosure junction box has emerged as the most trusted solution in the Indian market.
In this 3000-word deep dive, we will explore why these enclosures are indispensable, their technical specifications, and why they outperform traditional materials.

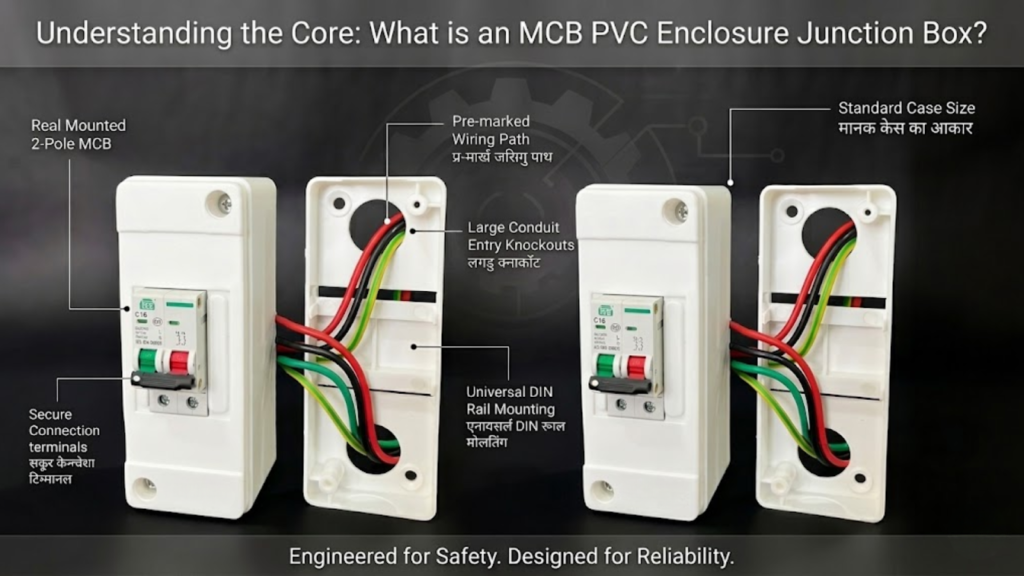

1. Understanding the Core: What is an MCB PVC Enclosure Junction Box?
An MCB PVC enclosure junction box is a protective housing specifically designed to hold Miniature Circuit Breakers (MCBs), Residual Current Circuit Breakers (RCCBs), and other modular electrical devices.
Why the Material Matters
- PVC (Polyvinyl Chloride): Unlike standard plastic, the PVC used in electrical enclosures is “High-Impact” and “UV-Stabilized.”
- Thermoplastic Properties: It can withstand significant heat without deforming, which is critical during an electrical overload.

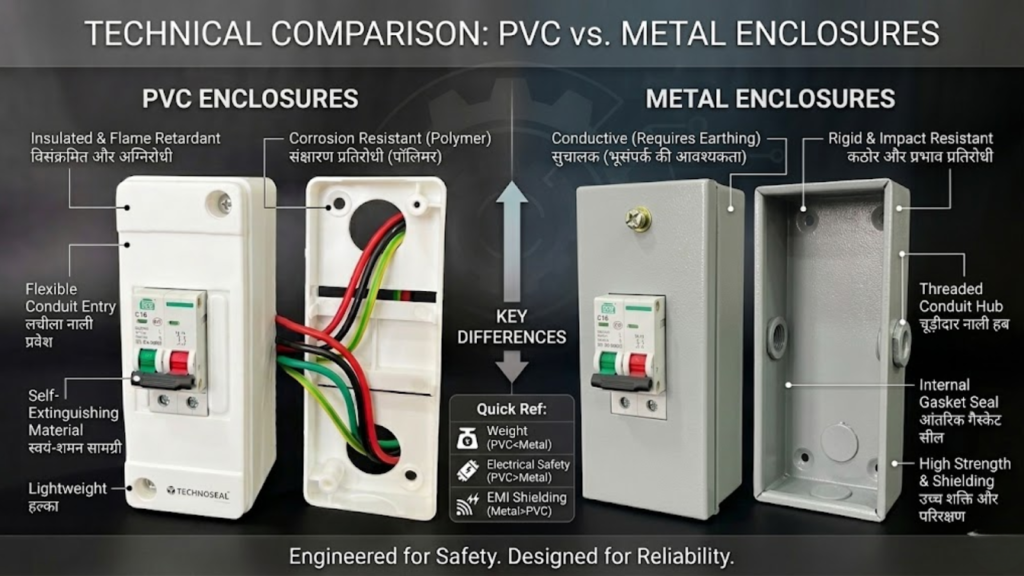

2. Technical Comparison: PVC vs. Metal Enclosures
For decades, metal (GI or Powder Coated) boxes were the norm.
| Feature | PVC Enclosure Junction Box | Metal (GI/Steel) Enclosure |
| Electrical Conductivity | Non-conductive (100% Shockproof) | Conductive (Requires Earthing) |
| Corrosion Resistance | 100% Rust-proof | Prone to Rusting over time |
| Weight | Lightweight & Easy to Mount | Heavy & Difficult to Install |
| Installation Speed | Fast (Pre-molded knockouts) | Slow (Requires drilling) |
| Cost | Economical | Expensive (High Maintenance) |
| Chemical Resistance | High | Low (Reacts with moisture/acid) |

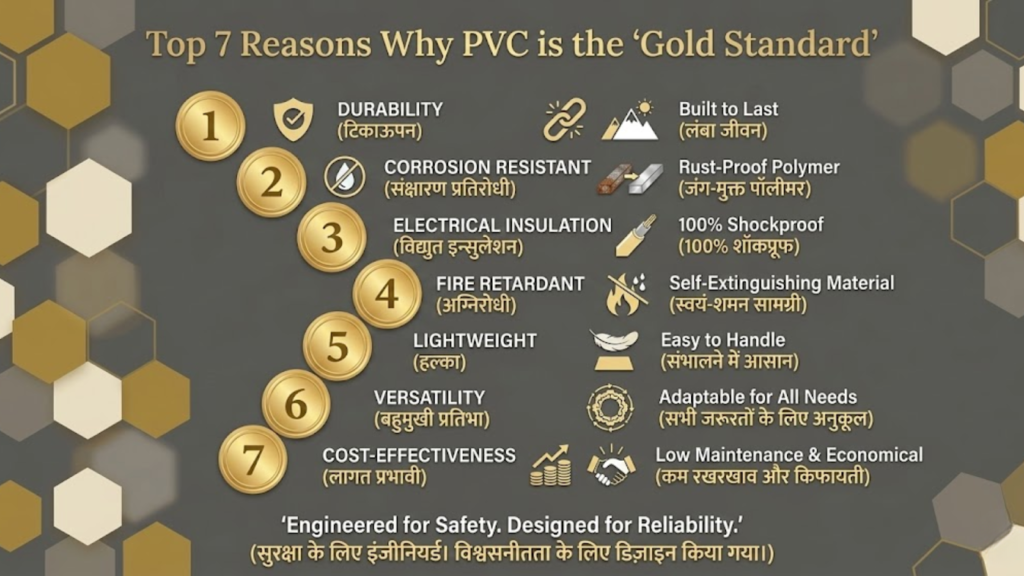

3. Top 7 Reasons Why PVC is the “Gold Standard”
A. Non-Conductivity and User Safety
In India, many older buildings have poor earthing systems. If a wire leaks current inside a metal box, the entire box becomes “live.” A MCB PVC enclosure junction box eliminates this risk entirely because PVC is a natural insulator.
B. Fire Retardancy (The UL94 Standard)
High-quality PVC enclosures are tested against fire. They are “Self-Extinguishing,” meaning if the source of the fire is removed, the plastic stops burning. This prevents an electrical spark from turning into a building-wide fire.
C. Weatherproofing and IP Ratings
For outdoor applications like CCTV camera protection or Solar Panel arrays, weatherproofing is non-negotiable.
- IP65 Rating: Protected against dust and low-pressure water jets.
- IP67 Rating: Can withstand temporary immersion in water.
D. UV Stabilization for Indian Summers
The Indian sun can be brutal. Standard plastics become brittle and crack under UV rays. A high-quality MCB PVC enclosure junction box is UV-stabilized, ensuring it stays strong for 10-15 years even when mounted on a rooftop.
E. Aesthetics and Modern Design
Modern interiors demand sleek designs. PVC enclosures come in various finishes (Transparent or Opaque lids) that blend perfectly with modern home decor, unlike bulky metal boxes.

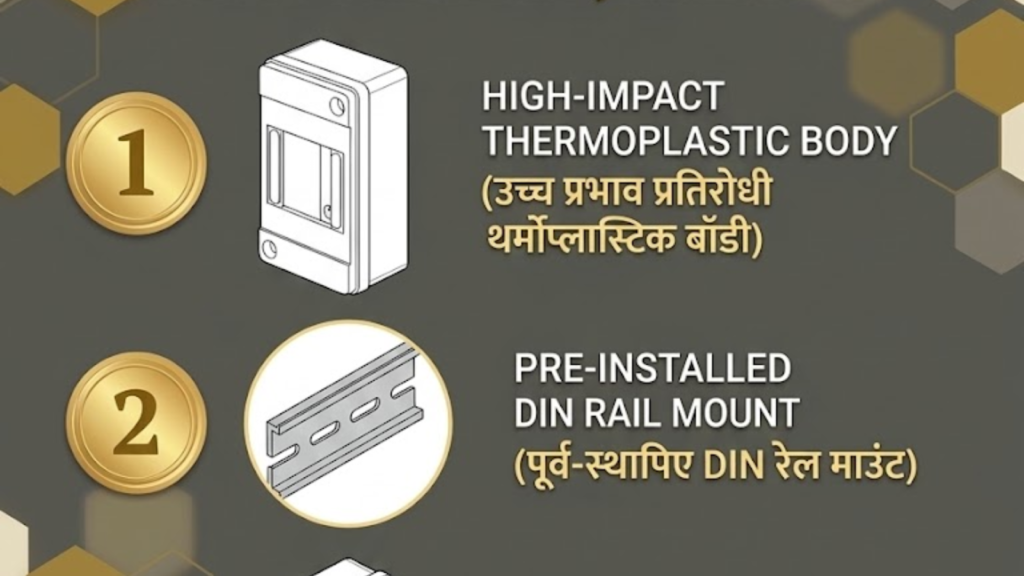

4. Deep-Dive: The Anatomy of a High-Quality MCB PVC Enclosure Junction Box
When you are selecting an MCB PVC enclosure junction box, you aren’t just buying a plastic shell. You are buying a precision-engineered system. To ensure “Gold Standard” safety, each component must meet specific industrial benchmarks.
A. The Chassis: High-Impact Thermoplastic Body
- Tensile Strength: In Indian construction sites, materials are often handled roughly. A high-quality enclosure can withstand accidental drops or hammer strikes without cracking.
- Wall Thickness: Look for a minimum wall thickness of 2.5mm to 3mm. Thinner walls lead to warping under heat, which can break the waterproof seal.
B. The Internal DIN Rail: The Backbone
The DIN Rail is a standard 35mm wide metal rail.
- Material: It should be Zinc-plated or Galvanized Steel to prevent rusting, even if moisture enters the box.
- Stability: In a premium MCB PVC enclosure junction box, the DIN rail is screwed into reinforced brass inserts rather than directly into the plastic. This ensures that even after 100 “on/off” cycles of a heavy MCB, the rail doesn’t become loose.
C. The Gasket & Sealing System (IP Protection)
This is what separates a “cheap” box from a “professional” one.
- Neoprene or Silicon Gaskets: It must be “aging-resistant” so it doesn’t get hard and crack in the Rajasthan heat.
- IP65/66 Certification: This ensures that fine dust (common in Indian industrial zones) and monsoon rains cannot penetrate the enclosure, preventing short circuits.
D. Captive Screws & Locking Mechanisms
- Rust-proof Screws: The screws holding the lid should be made of Stainless Steel (SS) or high-grade treated plastic.
- Captive Design: “Captive” means the screws don’t fall out of the lid when you unscrew them—a lifesaver when an electrician is working on a ladder at a height of 10 feet.
E. Knockouts and Cable Entry
- Multi-size Knockouts: Professional boxes provide different diameters (20mm, 25mm, 32mm) that can be “popped out.” This ensures a tight fit for various conduit sizes, maintaining the structural integrity of the MCB PVC enclosure junction box.
5. Extensive Application Areas: Where the Gold Standard is Mandatory
The versatility of the MCB PVC enclosure junction box makes it the primary choice across various Indian sectors.
A. Residential & Smart Home Automation
In modern Indian homes, we no longer just have a “main switch.” We have heavy loads like Inverters, 2-Ton ACs, and Electric Chimneys.
- Sub-Distribution: Small 2-way or 4-way PVC enclosures are used in every room as sub-DBs . This allows you to trip the power for just one room during a fault, rather than the whole house.
- Home Automation: These boxes are perfect for housing “Smart WiFi Switches” and “Relays” alongside the MCB, keeping the smart home tech cool and protected.
B. Solar Energy Systems (The Green Revolution)
India is a global leader in Solar power. In a rooftop solar setup, the MCB PVC enclosure junction box acts as a DC Combiner Box or an AC Distribution Box (ACDB).
- Heat Endurance: Solar panels sit on roofs where temperatures can reach 50°C. The UV-stabilized PVC prevents the box from becoming brittle under constant sun exposure.
- DC Safety: It safely houses DC MCBs and Surge Protection Devices (SPDs) that protect the expensive solar inverter from lightning strikes.
C. Industrial & Manufacturing Units
In factories in Jhunjhunu or Jaipur, dust and chemical fumes are common.
- Machine Control: Used to house the “Emergency Stop” MCB for heavy machinery.
- Chemical Resistance: Unlike metal boxes that corrode in the presence of acidic fumes or high salinity (near coastal areas), PVC remains chemically inert and stable.
D. CCTV Surveillance & Outdoor Security
Every outdoor CCTV camera needs a power source and a junction point.
- Power Supply Housing: A 4-way MCB PVC enclosure junction box is used to house the 12V DC power adapter and the MCB. It keeps the adapters dry during heavy monsoons.
- Anti-Tamper: Many units come with a “Padlock” facility, preventing unauthorized people from turning off the security cameras.
E. Agricultural Pump Sets
- Starter Protection: PVC enclosures protect the pump starters and MCBs from moisture, which is the #1 cause of motor failure in agricultural settings.
- Insect-Proof: The tight gasket seal prevents ants and spiders from nesting inside the electrical contacts, which often causes sparking in traditional open-style boxes.
Installation Best Practices
Step 1: Choose the Right Way (Way count) Enclosures come in 2-way, 4-way, 8-way, or even 12-way sizes. Always choose a box with 20% extra space for future expansions.
Step 2: Use Proper Cable Glands If installing outdoors, use “Cable Glands” at the entry points. This maintains the IP65 waterproof rating of your MCB PVC enclosure junction box.
Frequently Asked Questions (FAQ)
Q1: Can I use a PVC enclosure for high-voltage industrial machines? Ans: Yes, as long as the enclosure is rated for the voltage and the MCB inside is correctly sized for the load. PVC is excellent for industrial use due to its chemical resistance.
Q2: Is “Plastic” safe for fire-prone areas? Ans: It is important to distinguish between cheap plastic and Electrical Grade PVC. Electrical PVC is fire-retardant and tested to withstand high “Glow Wire” temperatures.
Q3: How do I know if my junction box is waterproof? Ans: Check the IP (Ingress Protection) rating. For rain protection, look for at least IP65 on the product packaging.
