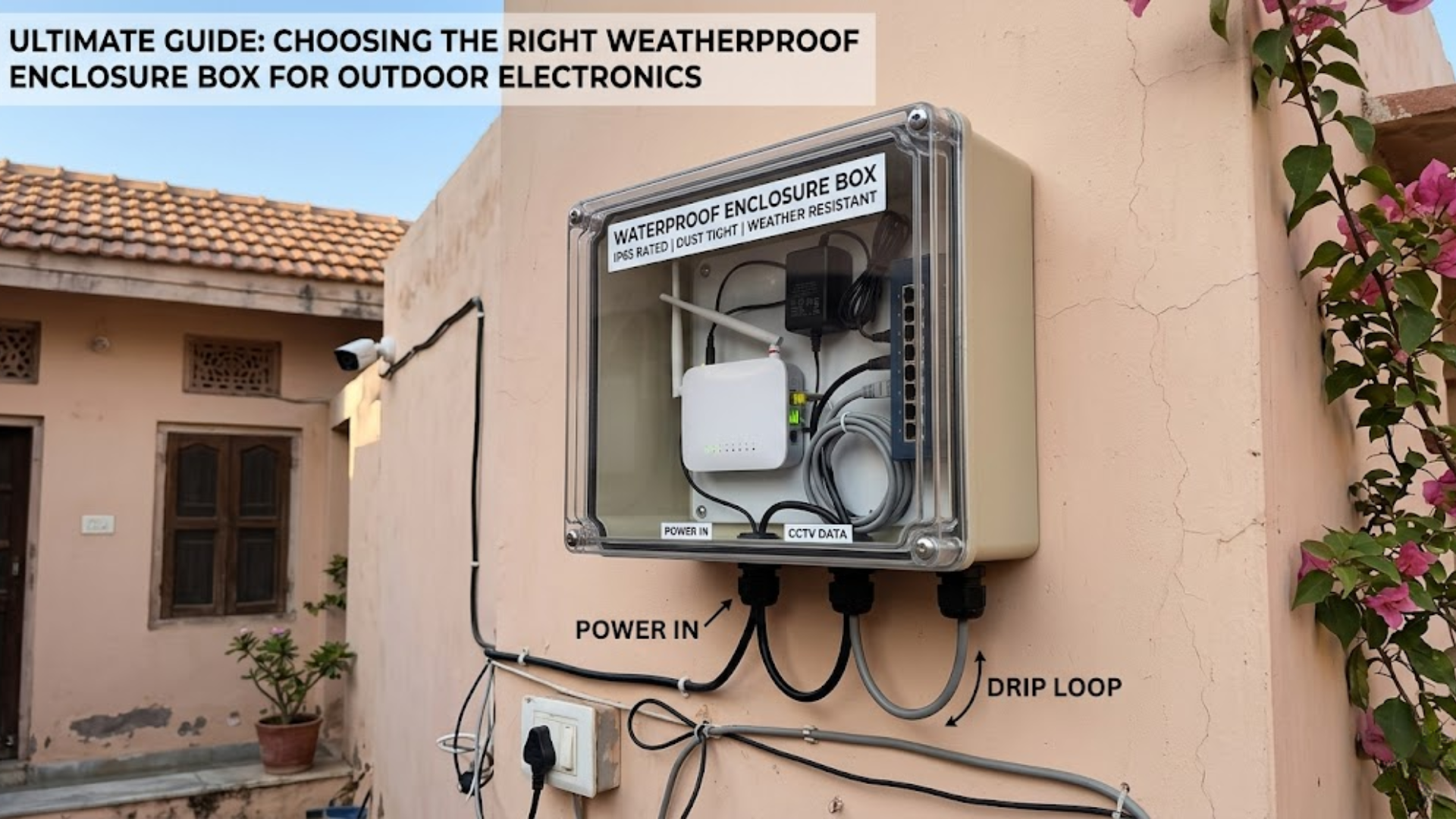

The Ultimate Guide to Choosing the Right Weatherproof Enclosure Box for Outdoor Electronics

In an era where outdoor surveillance, smart lighting, and solar energy are becoming standard for Indian homes and businesses, protecting your investment is paramount. A Weatherproof Enclosure Box is the silent guardian of your electronics, ensuring that rain, dust, and heat don’t lead to expensive short circuits.

1. Understanding the Core Purpose of a Weatherproof Enclosure Box

An enclosure is more than just a plastic or metal box. It serves three primary functions:

1. Environmental Protection: Keeping out moisture, rain, snow, and dust.
2. Physical Security: Preventing tampering, theft, or accidental impact.
3. Safety: Protecting humans from electrical shocks and preventing fires.

Common Outdoor Applications in India:

• CCTV Systems: Housing BNC connectors and power adapters.
• Solar Power: Protecting DC/AC junction points and charge controllers.
• Telecommunications: Protecting Wi-Fi routers or fiber optic splitters.
• Industrial Controls: Housing MCBs, timers, and contactors.

2. Decoding the IP Rating (Ingress Protection)

When buying a weatherproof enclosure, the IP Rating is the most critical technical spec. It consists of two digits:

• First Digit (0-6): Protection against solid objects (Dust).
• Second Digit (0-9): Protection against liquids (Water).

Quick Reference Comparison Table

IP Rating	Protection Level (Solids)	Protection Level (Liquids)	Best Use Case
IP54	Dust protected (limited ingress)	Splashing water from any direction	Semi-covered balconies
IP65	Dust-tight (No ingress)	Water jets (low pressure)	Standard outdoor wall mounting
IP66	Dust-tight	Powerful water jets	Areas with heavy monsoon rain
IP67	Dust-tight	Temporary immersion (1 meter)	Ground-level boxes (Waterlogging areas)
IP68	Dust-tight	Continuous immersion	Underwater or high-flood zones

3. Material Selection: What Suits the Indian Climate?

The material you choose determines the lifespan of the enclosure. In India, UV radiation and high humidity are the biggest enemies.

A. ABS (Acrylonitrile Butadiene Styrene)

• Pros: Cheap, lightweight, and easy to drill.
• Cons: Can become brittle under direct sunlight if not UV-treated.
• Best for: Low-cost residential CCTV setups.

B. Polycarbonate (PC)

• Pros: Highly impact-resistant, excellent UV stability, and flame retardant.
• Cons: More expensive than ABS.
• Best for: Solar installations and high-end outdoor electronics.

C. Stainless Steel (SS304/SS316)

• Pros: Maximum durability, rust-proof, and fire-resistant.
• Cons: Heavy, expensive, and can block Wi-Fi signals.
• Best for: Industrial plants and coastal areas (high salt content).

4. Key Design Features to Look For (Deep Dive)

When selecting a Weatherproof Enclosure Box, the difference between a high-quality product and a cheap local alternative lies in the engineering of its features. Here is a detailed breakdown of what makes an enclosure truly “trustable” for the Indian climate.

A. The Gasket Seal: The First Line of Defense

The gasket is the rubber or silicone ring that sits between the lid and the base.

• Continuous vs. Join-seam: Premium boxes use a continuous poured-in-place (PIP) gasket. This means there are no joins or gaps where water can seep in.
• Material Quality: In India’s heat (reaching 45°C – 50°C), cheap rubber gaskets become dry and crack. Look for EPDM or Silicone gaskets, which maintain elasticity even after years of sun exposure.

B. Impact Resistance (IK Rating)

While IP ratings measure water and dust, IK ratings measure resistance to physical impact.

• IK08 to IK10: These ratings indicate the box can withstand being hit by a stone, a falling branch, or accidental impact during maintenance. For public or street-side installations in India, high IK ratings are mandatory to prevent vandalism.

C. Cable Entry and Gland Compatibility

A box is only as waterproof as its weakest entry point.

• Pre-molded Knockouts: Some boxes come with “knockouts” that you can easily pop out. Ensure these are clean-cut to prevent jagged edges from tearing the seal.
• PG Glands: High-quality enclosures are designed to work with PG-threaded cable glands. These glands grip the cable tightly and provide a secondary seal, ensuring that even if the cable is pulled, the waterproof integrity remains intact.

D. Internal Mounting Infrastructure

A professional enclosure shouldn’t require you to drill through the back (which creates a leak path).

• Internal Bosses: Look for raised pillars inside the box where you can screw in a DIN rail or a mounting plate.
• Mounting Plates: These allow you to assemble your electronics (MCBs, controllers, power supplies) on a plate outside the box and then simply slide or screw the plate into the enclosure.

E. Security and Tamper Resistance

In many Indian residential areas, outdoor electronics are at risk of theft or tampering.

• Captive Screws: Ensure the lid screws are “captive,” meaning they stay attached to the lid even when unscrewed. This prevents losing screws while standing on a ladder.
• Security Latches: Some enclosures offer stainless steel latches with a hole for a padlock, providing an extra layer of security for expensive CCTV DVRs or solar controllers.

5. Comprehensive Step-by-Step Installation Guide

Proper installation is 50% of the battle. Even the most expensive IP67 enclosure will fail if installed incorrectly. Follow these professional steps for a long-lasting setup.

Step 1: Thermal Planning and Space Management

Before drilling a single hole, calculate the Heat Load.

• Rule of Thumb: Your electronics should occupy no more than 60-70% of the internal volume.
• Electronics like power adapters and DVRs generate heat. Without enough air space, the internal temperature can rise 20°C above the outside temperature, leading to device failure.
• Tip: If housing a high-heat device, consider installing a Pressure Compensation Plug (Breather Gland) to let air pressure equalize without letting water in.

Step 2: Preparing the Entry Points

• Precision Drilling: Use a step-drill bit to create perfectly round holes for your cable glands.
• Deburring: Always smooth out the edges of the hole. Small plastic burrs can prevent the cable gland from sitting flush, causing a micro-leak during heavy rain.

Step 3: Proper Orientation

Gravity is your best friend or your worst enemy.

• Bottom Entry: Always try to bring cables in from the bottom of the box.
• Avoid Top Entry: Never drill holes in the top of an outdoor enclosure. Over time, gravity will force water through even the best seals if it pools on top.

Step 4: The “Drip Loop” (The Professional’s Secret)

This is the most common mistake in Indian installations.

• How it works: Before the cable enters the gland, let it hang down in a “U” shape below the entry point.
• The Result: When it rains, the water travels down the cable. Because of the U-bend, the water drips off the bottom of the loop onto the ground instead of being funneled directly into the seal of your enclosure.

Step 5: Final Sealing and Torque

• Check the Gasket: Ensure no wires or stray strands of copper are sitting on the gasket before closing the lid.
• Even Pressure: Tighten the lid screws in a diagonal pattern (like car wheel nuts). This ensures even pressure across the entire seal, preventing the lid from warping.

FAQ (Frequently Asked Questions)

Q: Can I paint my weatherproof enclosure box?

A: Generally, no. Most paints do not adhere well to ABS or Polycarbonate and may contain chemicals that degrade the plastic’s UV resistance. If you must paint it, use a specialized plastic-bonding spray paint and ensure it is a light color to reflect heat.

Q: How often should I inspect my outdoor boxes?

 A: In India, we recommend an annual pre-monsoon checkup. Open the box, check for any signs of moisture, ensure the gasket isn’t brittle, and tighten any cable glands that may have loosened due to wind or vibration.

Q: Is “Waterproof” the same as “Weatherproof”?

 A: Not exactly. Waterproof usually means it can be submerged (IP67/68). Weatherproof means it can handle the total environment—sun, wind, dust, and rain. A box can be waterproof but if it isn’t UV-resistant, it will fail in the sun within months.
