Imagine spending ₹30,000 to ₹1,500,000 on a state-of-the-art surveillance ecosystem for your home, commercial complex, or industrial warehouse. You invested in high-end 4K resolution cameras, AI-powered human detection, premium Network Video Recorders (NVRs), and heavy-duty surveillance-grade hard drives.This is exactly where the modest yet critical CCTV junction box becomes the unsung hero of your security infrastructure. In this definitive guide, we will deep-dive into why this budget-friendly accessory is absolutely non-negotiable for a reliable, commercial-grade, or residential security setup in India.
1. What is a CCTV Junction Box? An In-Depth Look

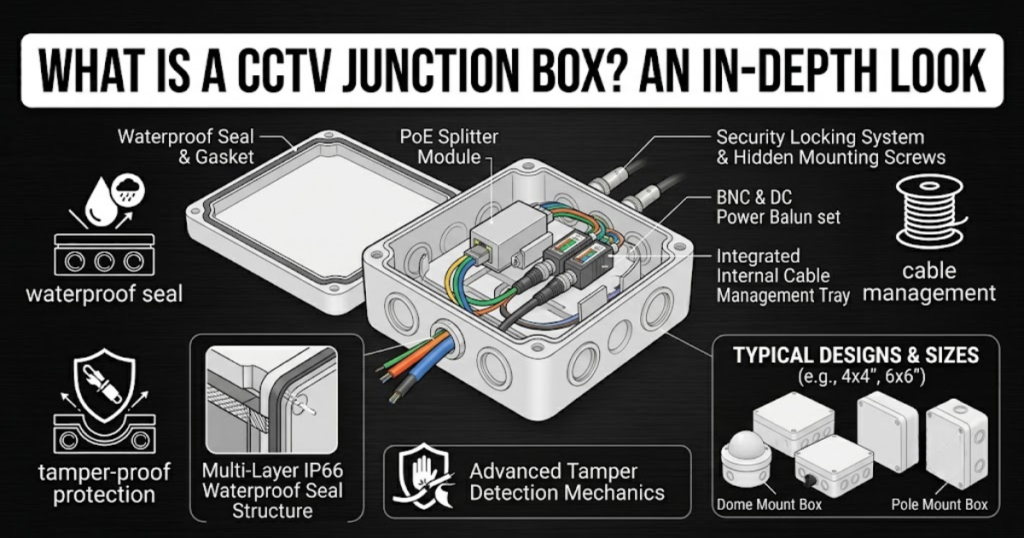

A CCTV junction box is a compact, robust, weather-resistant structural enclosure designed specifically to house, organize, and shield the termination points of a security camera’s cabling.
The Anatomy of Camera Terminations
Every security camera features a short cable bundle coming out of its base, often referred to as the pigtail cable. This bundle contains delicate structural interfaces:
- For IP (Internet Protocol) Cameras: An RJ45 female ethernet port, a 12V DC power backup pin, and occasionally an audio input/output jack.
- For HD Analog Cameras: A BNC (Bayonet Neill–Concelho) connector for video transmission and a male/female DC barrel connector for power supply.
[Camera Body]
│
[Pigtail Cable Bundle] ──> (Delicate BNC/RJ45/DC joints)
│
==========================================
│ CRITICAL SHIELDING ZONE │ <── This is where the
│ (Protected inside the Junction Box) │ Junction Box seals everything!
==========================================
│
[Main Conduit Run] ──> [To NVR / DVR / Power Supply Switch]
When an installer mounts a camera, these pigtail connections must link up with the main structural cable runs (Cat6, 3+1 coaxial, or fiber optic cables) coming from the central network rack.
A junction box acts as a specialized mechanical vault for these connection points. It isolates them completely from external destructive forces while doubling as a highly stable, structurally sound mounting platform onto which the security camera itself is anchored.
