The Ultimate Master Guide: Why You Should Never Skip a Junction Box for Your CCTV Installation in 2026

Security is no longer a luxury in India; it is a necessity. Whether it’s a high-rise apartment in Mumbai, a manufacturing unit in Ahmedabad, or a retail store in Delhi, CCTV cameras are the silent guardians of our assets. However, a chain is only as strong as its weakest link. In most security systems, that weak link is the exposed wiring.As we move through 2026, the technology behind surveillance—AI, 4K, and Thermal Imaging—demands a professional housing environment. This is where the camera junction box comes into play.

1. Understanding the Core Role of a Junction Box

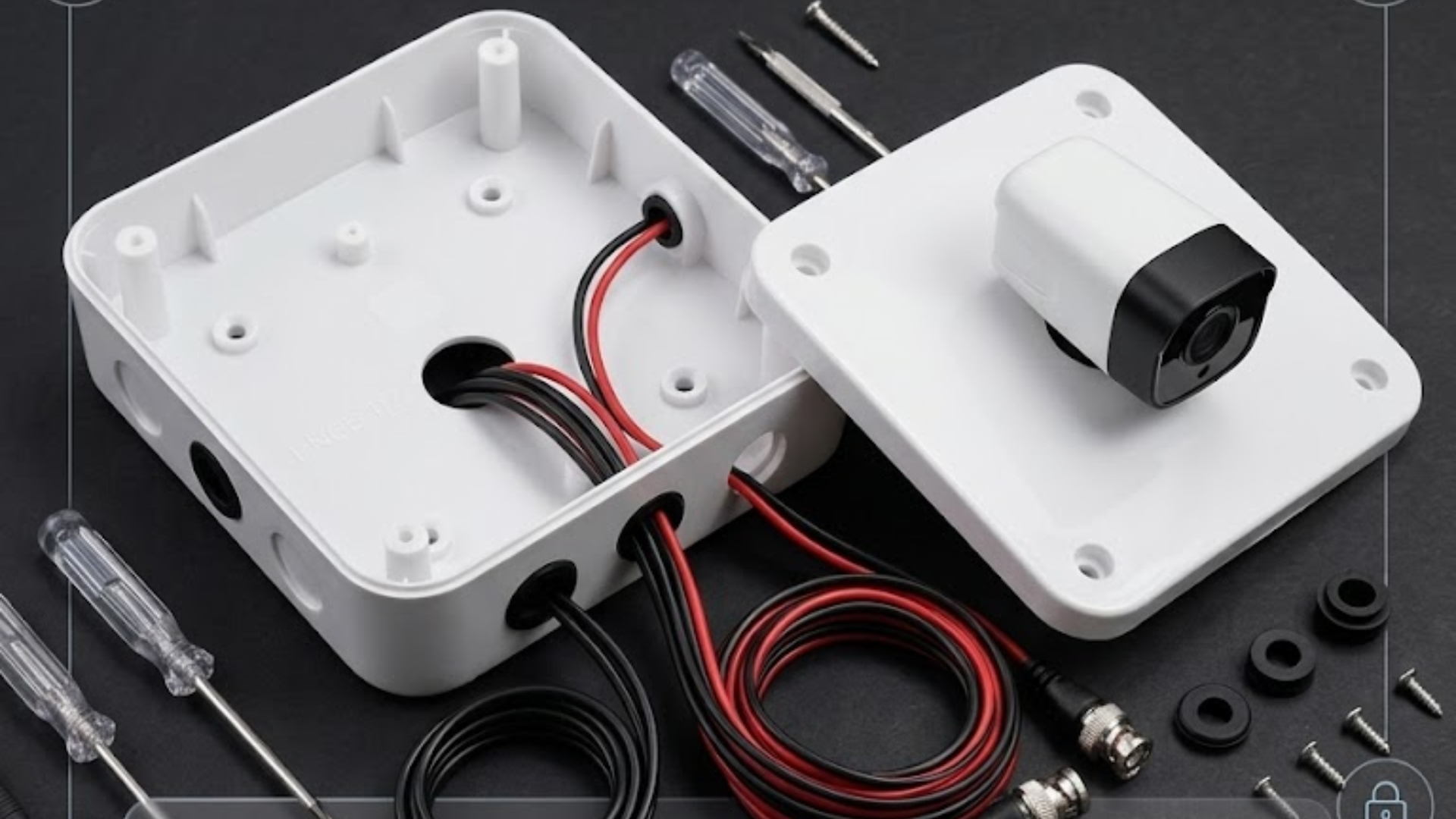

A camera junction box is a specialized enclosure designed to mount a security camera and house its cable connections. It acts as the “brain-case” for the external wiring, protecting the delicate transition from the camera pigtail to the main infrastructure cable.

Why “Tape and Tuck” is Dead in 2026

Traditionally, local installers would wrap connections in electrical tape and tuck them into a hole in the wall or a PVC pipe. This is outdated because:

• Digital Signal Integrity: 4K and 8K cameras require precise data transmission. Moisture-induced resistance can ruin video quality.
• Fire Safety: Improperly taped DC connections can overheat and cause sparks, posing a fire risk to building insulation.
• Warranty Issues: Many premium brands may void your warranty if they find the camera’s internal pigtail has been damaged by water due to lack of a junction box.

2. Technical Comparison: With vs. Without Junction Box

Feature	Installation WITH Junction Box	Installation WITHOUT Junction Box
Weather Resistance	IP66/67 Protection against rain & dust	Exposed to humidity; high risk of corrosion
Cable Management	Clean, hidden, and organized	Messy “rat-nest” of wires
Maintenance	Easy access via screw-on lid	Hard access; often requires cutting tape/walls
Security	Tamper-proof; wires cannot be cut easily	Vandal-prone; wires can be unplugged/cut
Durability	Lasts 10+ years	Connections fail within 1-2 monsoon seasons
Signal Quality	Constant and stable	Intermittent “Video Loss” due to rust

3. The Indian Context: Why Our Environment Demands Better Hardware

The Indian subcontinent presents unique challenges that Western-made guides often ignore. A camera junction box is essential here for three specific reasons:

A. The Monsoon Factor

In regions like Kerala, Assam, or coastal Gujarat, the humidity levels are consistently above 80%. Moisture doesn’t just come from rain; it’s in the air. Without a sealed enclosure, the copper pins in your RJ45 or BNC connectors will undergo oxidation. This creates a green crust on the pins, leading to signal dropouts exactly when you need the footage most.

B. Dust and Urban Pollution

In Tier-1 cities and industrial zones, fine dust particles (PM2.5) can penetrate the smallest gaps. Over time, dust acts as an insulator, causing the connectors to heat up. An industrial-grade junction box ensures a dust-tight seal.

C. Pest Control

It’s a common issue in Indian warehouses and homes—lizards, spiders, and even rodents chewing through exposed CCTV wires. A solid polycarbonate or metal box prevents pests from nesting around the warm power connectors.

4. Different Types of Junction Boxes for 2026: A Deep Dive

In the modern security landscape, “one size fits all” is a myth. Choosing the wrong type of box can lead to installation failure or aesthetic disaster. Here is the comprehensive breakdown of the options available in the Indian market.

A. Polycarbonate (UV Stabilized) Boxes

These are the most popular choice for residential and light commercial use in India.

• Why Polycarbonate? Unlike cheap PVC, UV-stabilized polycarbonate does not turn yellow or become brittle when exposed to the harsh 45°C+ temperatures of North India.
• Best For: Wall-mounted home security, retail shops, and indoor office corridors.
• Key Advantage: It is non-conductive, meaning there is zero risk of the box itself carrying a current if a wire frays inside.

B. Die-Cast Aluminum Weatherproof Boxes

For industrial sites, chemical plants, or high-security zones, metal is the gold standard.

• Material Strength: These are built to withstand physical impact (Vandal Resistance). If someone hits the camera with a stick, the box remains intact.
• Heat Dissipation: Metal acts as a natural heat sink, which is crucial for high-performance 8MP (4K) cameras that generate significant heat at the base.
• Grounding: Aluminum boxes provide an extra layer of electrical grounding, protecting the camera from minor surges.

C. Deep-Base vs. Low-Profile Designs

• Deep Base: Designed for IP cameras that have thick waterproof “donuts” on their RJ45 connectors. If you try to force these into a slim box, you risk “Micro-Bends” in the cable, which leads to data packet loss.
• Low Profile: These are purely for aesthetics. They are used in high-end luxury interiors where the user wants the camera to look like it is part of the architecture.

D. Pole-Mount Integrated Boxes

Mounting a camera on a circular pole (like a street light or a gate pillar) is a nightmare without the right box.

• Design: These feature a curved back and dedicated slots for stainless steel “Jubilee” clips or metal straps.
• Stability: They prevent the camera from “shaking” during high winds, which is essential for AI-based motion detection to work accurately without false alarms.

5. Step-by-Step: The Professional 2026 Installation Protocol

A camera junction box is only as good as its installation. If installed incorrectly, it can actually trap moisture inside, doing more harm than good. Follow this professional SOP (Standard Operating Procedure):

1: The “Drip Loop” Strategy

The most common mistake Indian technicians make is running the wire straight down into the box.

• The Problem: Gravity pulls rainwater along the cable directly into the seal.
• The Solution: Create a U-shaped loop in the cable just before it enters the box. This ensures that water drips off the bottom of the loop onto the ground, rather than entering your camera junction box.

2: Precision Drilling & Mounting

• Template Alignment: Most premium boxes (like those from ESA) come with a drill template. Use a spirit level to ensure the box is perfectly horizontal. A tilted box means a tilted camera view.
• Wall Plugs: Use high-quality nylon wall plugs. In the Indian heat, cheap plastic plugs expand and contract, causing the box to become loose over time.

3: Cable Management Inside the Box

• The 3-Inch Rule: Leave at least 3 inches of slack inside the box. This allows you to pull the camera out for cleaning or maintenance without straining the internal connectors.
• BNC & DC Pin Isolation: Ensure the video connector and power connector are not touching each other. In analog systems, this prevents “ghosting” or lines on the screen.

4: Hermetic Sealing

• Gasket Check: Before closing the lid, check the rubber O-ring. If it’s twisted or missing, the box loses its IP67 rating.
• Silicone Finishing: Apply a small bead of weather-neutral silicone at the point where the wire enters the box. This prevents “breathing”—where the box pulls in humid air as it cools down at night.

6. ROI (Return on Investment) Analysis: Why Spending ₹300 Saves ₹5000

In a price-sensitive market like India, explaining the ROI is the best way to close a sale. Let’s look at the financial math of using a camera junction box.

A. Reduction in Service Calls (The “Hidden” Cost)

A typical CCTV technician in a city like Surat or Jaipur charges between ₹500 to ₹800 for a single visit.

• Scenario A (No Box): Moisture corrodes the DC pin in 12 months. You pay for a visit + new connectors + labor. Total: ₹1,000+.
• Scenario B (With Box): The connection remains pristine. Zero visits required for 5 years.
• Result: The box paid for itself 3 times over in just one year.

B. Protecting the Life of the Camera

A 4MP IP camera costs roughly ₹2,500 – ₹4,500.

• If water travels through the cable into the camera’s internal circuitry (Capillary Action), the camera is “Dead on Arrival” and no brand covers water damage under warranty.
• By spending 10% of the camera’s cost on a junction box, you are essentially buying an insurance policy for the other 90%.

C. Business Continuity and Legal Protection

For businesses, a camera going “Offline” isn’t just a technical glitch—it’s a security breach.

• If a theft occurs and your camera was “Offline” due to a rusted connector, the financial loss could be in lakhs.
• In 2026, many Indian insurance providers (like New India or ICICI Lombard) look for “Standardized Installation Practices” before settling burglary claims. An exposed wire is often cited as “Negligence.”

D. Property Resale and Aesthetic Value

A property with professionally installed, boxed cameras looks well-maintained. Hanging wires suggest a “jugaad” approach, which can negatively impact the perceived value of a premium office space or a luxury bungalow.

Frequently Asked Questions (FAQ)

Q1: Can I use a regular electrical PVC box instead of a CCTV Junction Box?

• Answer: While possible, it’s not recommended. Dedicated CCTV boxes are designed with pre-drilled mounting holes that fit the camera base perfectly, ensuring a waterproof seal that standard electrical boxes lack.

Q2: Does every camera brand need a specific box?

• Answer: Most modern boxes are “Universal.” Brands like ESA provide multi-hole patterns that support Hikvision, CP Plus, Dahua, and Honeywell cameras seamlessly.

Q3: Is a plastic box strong enough for outdoor use?

• Answer: Yes, provided it is UV-stabilized polycarbonate. This material won’t become brittle or crack under the intense Indian sun.

Q4: Will a junction box affect the camera’s warranty?

• Answer: On the contrary, it protects it. It prevents “water ingress” through the cable, which is a common reason for warranty rejection.

---

Conclusion: The Verdict for 2026

In 2026, your security system is your first line of defense. Whether you are a homeowner or a business owner, do not let your security be compromised by the lack of a simple enclosure.

Always insist on a high-quality camera junction box. It is the hallmark of a professional installation, a safeguard against the elements, and the best way to ensure your cameras keep rolling, no matter what.
