Camera Junction Box vs Direct Wall Mounting: Why It’s Worth the Investment
When setting up a CCTV surveillance network for a residential villa, retail showroom, multi-storey warehouse, or commercial office in India, choosing the right camera junction box is just as critical as selecting the camera itself. Most decision-makers focus almost entirely on hardware specifications: megapixel count, starlight color night vision, AI human/vehicle detection, and NVR storage capacity.However, an overwhelming majority of real-world surveillance failures in outdoor conditions are not caused by defective image sensors or faulty motherboards. They are triggered by exposed wiring connections, cable corrosion, thermal wear, and poor physical mounting. Using a high-grade camera junction box provides the physical protection needed to keep these sensitive connection points completely safe from the elements.

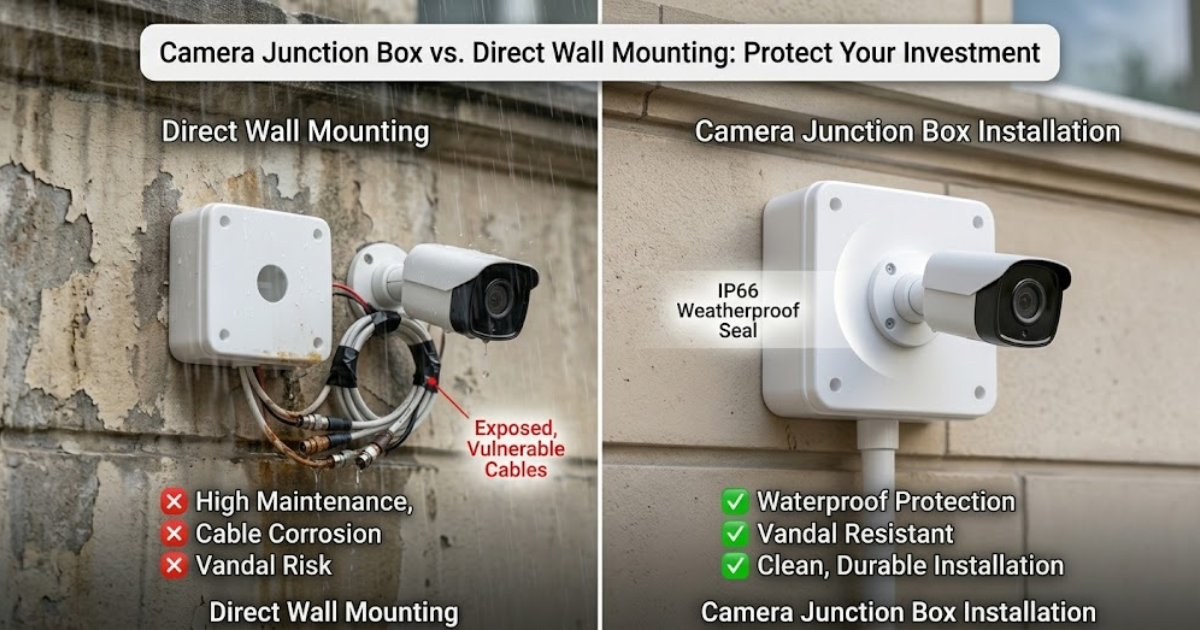

During the installation phase, technicians generally offer two distinct methods:
Direct Wall Mounting: Fastening the camera base directly onto the plastered brickwork, concrete, or stone facade with the terminal connectors exposed or wrapped in insulation tape.
Camera Junction Box Installation: Anchoring a dedicated, weatherproof, deep-base camera junction box directly to the structure and seating the camera securely on top of its reinforced faceplate.
Choosing a quality camera junction box over direct mounting dictates whether a surveillance setup delivers 5+ years of uninterrupted security or becomes a recurring maintenance headache plagued by “No Video Signal” errors every monsoon.
What Is a Camera Junction Box?
A camera junction box is a heavy-duty, impact-resistant, weatherproof enclosure engineered specifically for CCTV surveillance mounting. It acts as an intermediate structural interface between the architectural surface and the camera body.
High-Grade Body Material: Fabricated from UV-stabilized ABS thermoplastic, polycarbonate, or die-cast aluminum alloy.
Pre-Threaded Conduit Knockouts: Precision entry ports (typically M20 or 1/2-inch / 3/4-inch NPT) that mate with PVC conduit pipes and PG cable glands to create an unbroken water-sealed pathway.
Silicone/Neoprene Sealing Gaskets: Continuous rubberized O-rings placed along the rim of the lid and cable entry points to prevent water and fine particulate ingress under high pressure.
Universal Mounting Faceplate: Engineered hole patterns that accommodate standard 2-hole, 3-hole, and 4-hole mounting patterns for compact domes, heavy-duty turrets, and long-range bullet cameras.
Deep Internal Compartment: Provides sufficient cubic volume to house oversized connectors, passive video baluns, inline PoE splitters, surge protective devices, and excess cable coils without mechanical compression.
Detailed Comparative Analysis
The table below contrasts both installation paradigms across functional, mechanical, structural, and financial dimensions:
Feature / Metric
Direct Wall Mounting
Camera Junction Box Installation
Connector & Joint Protection
Completely exposed or taped externally
Encapsulated inside a clean, dry, sealed chamber
Weatherproofing Grade
Effectively IP20 (vulnerable to rain and moisture)
Certified IP65, IP66, or IP67 weather ingress protection
Corrosion & Rust Resistance
RJ45 pins and DC barrels oxidize within 6–12 months
Zero moisture contact; contact pins remain clean indefinitely
Vandal & Tamper Resistance
Exposed pigtails can be cut, yanked, or tapped quickly
Wires run directly through sealed conduit pipes into the box
Surface Leveling & Rigidity
Prone to wobble on uneven brick, mortar, or rough plaster
Provides a perfectly flat, non-flexing mounting base
Pest & Rodent Defense
Wires vulnerable to rats, squirrels, and birds
Completely sealed; impenetrable to pests and nesting insects
Maintenance Accessibility
Requires dismounting camera and re-taping fragile wiring
Open 4 front cover screws to access clean test points
Cable Management & Neatness
Messy wires and unraveling black tape degrade aesthetics
Operates reliably for 5–8+ years with zero wiring faults
Initial Upfront Hardware Cost
₹0 extra hardware cost
₹90 – ₹350 per box (depending on plastic vs aluminum)
Long-Term Total Cost of Ownership
High due to frequent call-outs and connector replacement
Near-zero maintenance and repair costs
The Impact of Indian Environmental Conditions
Surveillance equipment in the Indian subcontinent faces extreme environmental stressors. A camera junction box provides a defensive barrier against these regional factors:
1. Monsoon Torrential Rains and High Ambient Relative Humidity
Water Infiltration: During heavy monsoons across coastal and plains belts, driving rain penetrates standard vinyl electrical tape within weeks.
Contact Oxidation: Water entering an RJ45 Ethernet jack causes galvanic corrosion on gold-plated copper contact pins. This introduces data packet drops, video stutter, pixelation, and eventual dropouts.
PoE Short-Circuits: In PoE (Power over Ethernet) systems running 48V DC, water bridging the power and data pins triggers immediate ground faults and port burnout inside expensive PoE switches.
2. High Summer Temperatures and Direct UV Radiation
Adhesive Failure: In northern and central regions where summer temperatures routinely exceed 42°C–47°C, surfaces under direct sunlight reach over 60°C. Standard PVC tape unravels, leaving naked copper and plastic pins exposed to sunlight.
Jacket Brittleness: Unprotected camera pigtail cables degrade quickly under prolonged UV exposure, leading to cracked, stiff, and brittle insulation that flakes off when adjusted.
3. Dust Storms and Particulate Pollution
Industrial and Urban Ingress: High concentrations of PM10 and PM2.5 dust particles settle inside open DC power barrel jacks. Combined with morning dew, this dust turns into an abrasive, conductive sludge that causes intermittent power resets whenever the camera switches on its IR LEDs.
4. Urban Fauna: Rodents, Birds, and Pests
Cable Chewing: Rats and squirrels frequently chew through exposed, soft PVC camera pigtails, cutting video feeds instantly.
Insect Inhabitation: Spiders, wasps, and geckos often nest in the warm crevices behind directly mounted cameras, eventually shorting out open connectors.
The 6 Core Technical Advantages of Using a Camera Junction Box
1. Certified IP65/IP66 Ingress Protection
Creates a hermetically sealed barrier against wind-driven rain, high-pressure garden sprays, and atmospheric condensation.
Integrated silicone channel gaskets maintain seal integrity even through extreme seasonal expansion and contraction cycles.
2. Complete Conduit Integration and Anti-Tamper Security
Enables seamless mechanical coupling with standard 20mm or 25mm PVC/GI conduit systems.
From the main distribution rack to the camera lens, not a single millimeter of copper wire remains exposed to human tampering, wire-cutters, or accidental physical impact.
3. Proper Maintenance of Minimum Cable Bend Radius
Category 6 network cabling mandates a minimum bend radius of at least 4 times the outer cable diameter (~1 inch). Coaxial RG-59 cables require even broader clearances.
Deep base junction boxes provide 45mm to 65mm of internal depth, allowing installers to loop excess cable cleanly without introducing structural kinks that attenuate high-frequency video data.
└───► [Signal Loss] │ Slack │ ◄── Safe Bend Radius
╰─────────╯
4. Structural Leveling on Irregular Masonry and Plaster
Indian residential walls—often finished with coarse sand plaster, stone cladding, or rustic bricks—rarely present a flat plane.
Screwing a three-hole camera base directly against an irregular wall flexes the camera’s cast chassis, introducing mechanical stress that can warp internal sensor alignments or compromise factory water seals.
A junction box absorbs wall surface irregularities, presenting a precision-machined, flat faceplate for the camera.
5. Drastic Reduction in Long-Term Troubleshooting Time
Direct Mount Service Call: The technician must unscrew the entire camera from the wall, pull fragile cables from the masonry hole, slice off old electrical tape, re-terminate corroded RJ45 ends, drill new holes if the old plastic plugs stripped out, and then re-align the camera angle.
Junction Box Service Call: The technician simply loosens 4 captive screws on the faceplate, inspects dry, corrosion-free connectors, plugs in an inline CCTV PoE test monitor, resets the hardware if needed, and fastens the box closed—completing the job in under five minutes.
6. Clean, Professional Architectural Aesthetics
Replaces exposed cable loops, dangling splitters, and deteriorating tape with a neat, color-matched (white, grey, or black) enclosure that aligns flush with building conduit paths.
Material Selection: ABS Plastic vs Polycarbonate vs Die-Cast Aluminum
Selecting the appropriate material grade depends directly on the installation environment:
Drill 6/8mm holes Fasten base firmly & Crimp clean RJ45, seat Bolt camera to lid,
& insert wall plugs use bottom conduit entry silica gel & check O-ring torque down faceplate
Mounting Surface Preparation: Position the junction box base against the wall. Mark drilling points using the box’s integrated anchor templates. Drill holes with a 6mm or 8mm masonry bit and insert high-quality nylon wall plugs.
Conduit and Gland Setup: Always bring conduit entries into the bottom or lower sides of the junction box. Avoid top-entry conduit runs if possible, as gravity will guide water condensation down the pipe straight into the connection port.
Sealing the Cable Glands: Fit IP68-rated PG-9 or PG-11 cable glands or rubber grommets over the incoming network/power cable. Tighten the gland collar to clamp down on the cable outer jacket.
Internal Connection Termination: Crimp the RJ45 modular plug or BNC joint cleanly inside the dry chamber. Leave 4 to 6 inches of service loop slack folded in an “S-shape” inside the box.
Silica Gel Ingress Trick: Drop a single small packet of silica gel (desiccant) into the base of the box before closing it. This absorbs any tiny amount of ambient humidity trapped inside the enclosure during the installation process.
Lid Closure and Torque Check: Ensure the continuous perimeter silicone gasket is seated cleanly inside its retaining groove. Fasten all corner screws in a diagonal crisscross pattern to distribute uniform mechanical pressure across the rubber seal.
Camera Faceplate Attachment: Bolt the camera base bracket to the pre-tapped brass inserts on the junction box lid using the supplied machine screws.
Total Cost of Ownership (TCO): Real-World Math
Consider the realistic financial breakdown for a standard 8-camera outdoor surveillance setup over a 3-year operating period:
Scenario A: Direct Wall Mounting (Saving Upfront Costs)
Initial Hardware Surcharge: ₹0
Year 1 Maintenance: 2 cameras drop offline during monsoon due to RJ45 oxidation. Technician call-out, re-crimping, and waterproof taping costs: ₹1,200.
Year 2 Maintenance: UV heat melts electrical tape on 4 cameras; 1 camera suffers permanent PoE port burnout due to rainwater bridging pins. Replacement camera + service labor: ₹3,200.
Year 3 Maintenance: Persistent signal drops on remaining cameras, requiring complete rewiring of 3 drop lines damaged by rodent bites and pin rot: ₹2,500.
Total 3-Year Extra Expenditure:₹6,900 (Plus cumulative security downtime of several weeks).
Scenario B: Professional Camera Junction Box Installation
Initial Hardware Surcharge (8 Units @ ₹150 avg): ₹1,200
Initial Labor Installation Addition: ₹400
Year 1 Maintenance: ₹0 (All connections dry and functional).
Year 2 Maintenance: ₹0 (Zero oxidation, seals intact).
Year 3 Maintenance: ₹0 (Zero corrosion or physical wire damage).
Total 3-Year Extra Expenditure:₹1,600 (With 100% video uptime).
The data shows that installing a camera junction box pays for itself within the very first rainy season by eliminating recurring technician call-outs and hardware failures.
Frequently Asked Questions (FAQ)
Can I install an outdoor bullet or dome camera without a camera junction box?
Technically, yes, the camera will power on and operate initially. However, leaving the pigtail connectors exposed without a sealed enclosure drastically increases the risk of water damage, pin corrosion, signal dropouts, and hardware failure within 6 to 12 months in outdoor settings.
Are all camera junction boxes universal in size and hole patterns?
Most modern aftermarket junction boxes feature universal mounting faceplates with multiple concentric hole patterns. These match the industry-standard mounting geometry of 95% of bullet, dome, and eyeball turret cameras from major brands (including Hikvision, Dahua, CP Plus, Uniview, and Axis). Always check the base diameter (e.g., 100mm, 120mm, or 135mm) against your camera’s spec sheet before purchasing.
What is the minimum IP rating required for an outdoor CCTV junction box?
For outdoor locations exposed to monsoon rain, high humidity, and dust, choose a minimum rating of IP65 (dust-tight and protected against water jets). For open coastal belts, unshaded rooftops, or areas subject to heavy tropical storms, an IP66 or IP67 rated junction box provides optimal protection.
Can a junction box fit passive video baluns and PoE splitters?
Yes. Deep base camera junction boxes (typically offering 45mm to 65mm of internal depth) are specifically designed with enough interior volume to house RJ45 connectors, 12V DC male/female plugs, passive HD video baluns, inline PoE splitters, and excess cable loops without pinching wires.
